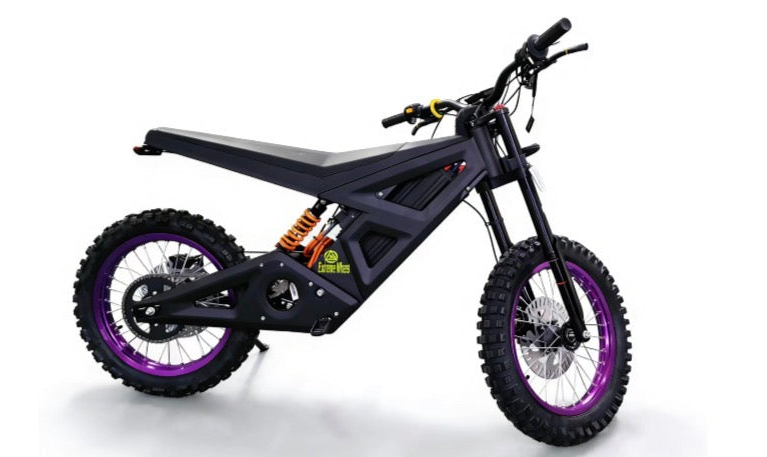

Extreme Wheel A1 Mini
$2,499.99
- Compact electric dirt bike with a mid-mounted 4kW motor
- Published 2,200Wh battery configuration; battery variants differ
- 17-inch front and 16-inch rear wheel fitment
- 30.3-inch seat height for a compact riding position
Shipping options are shown at checkout. Contact us to arrange a local test ride.
Built for the ride.
Performance highlights, equipment and the full technical picture.
Extreme Wheel A1 Mini
A compact off-road electric dirt bike with a mid-mounted motor and a smaller frame for nimble handling.
Motor4,000 W mid-mounted
Battery72V / 2,160Wh or 84V / 2,200Wh (retailer-listed variants)
Battery cell typeSamsung 21700
Technical specifications
| Motor | 4,000 W mid-mounted |
|---|---|
| Battery | 72V / 2,160Wh or 84V / 2,200Wh (retailer-listed variants) |
| Battery cell type | Samsung 21700 |
| Speed figure | 43 mph no-load; not riding speed |
| Controller | 150A rated, 200A peak |
| Seat height | 30.3 inches |
| Wheelbase | 47.4 inches |
| Suspension travel | 7.1 inches front, 5.9 inches rear |
| Tires | 70/100-17 front, 90/100-16 rear |
| Vehicle weight | 139 lb |
| Maximum load | 331 lb |
| Alternative battery | 72V, 30Ah / 2,160Wh Samsung 50S (other listings) |
| Rear wheel torque | 184 lb-ft (Moneta reported) |
| Ground clearance | 9.8 in |
| Dimensions (L × W × H) | 70.5 × 31.3 × 40.2 in |
| Shipping weight | 183 lb |
| Braking | Hydraulic disc brakes |
| Riding use | Off-road; local legality varies |
| Range | Not consistently verified between variants |
About published performance figures
Performance, range and equipment can vary with battery version, production batch, riding conditions, and vehicle configuration. Confirm exact equipment before ordering. These third-party published figures are not independent measurements.
Specifications source: Model reference.
